CC1080S 1920x1080 FHD 0.37”
CC1080M 1920x1080 FHD 0.39”
CC1080L 1920x1080 FHD 0.55”
CC2020 2560x2560 UHD 0.55”
CC4020M 4096x2240 UHD 0.62”
CC4020L 4096x2240 UHD 0.78”
CC4040 4096x4096 UHD 0.77”
CC8040 7680x4352 UHD 1.11”
CC1080S
FHD LCoS SoC | 1920x1080 0.37”
Features
- FHD 1920x1080 resolution
- 120 frame per sec refresh rate
- Efficient IO placing for system integration
- Vivid colors with true black
- AR VR applications
- Horizontal and vertical image flipping
- Cost efficient system design
- Low power consumption
| Parameter | Specification | Units |
|---|---|---|
| CC1080S | ||
| Pixel Matrix | 1936 x 1096 | Pixels |
| Active Matrix | 1920 x 1080 | Pixels |
| Active Matrix Area | 8.19 x 4.61 | mm |
| Display Size | 0.37 | in |
| Pixel Mirror / Pixel Pitch | 4.07 / 4.3 | um |
| Aperture Ratio | 89.6 | % |
| Dot Clock | 125 | MHz |
| Video Drive Method | Invert video every frame, 8 pixels per dot clock |

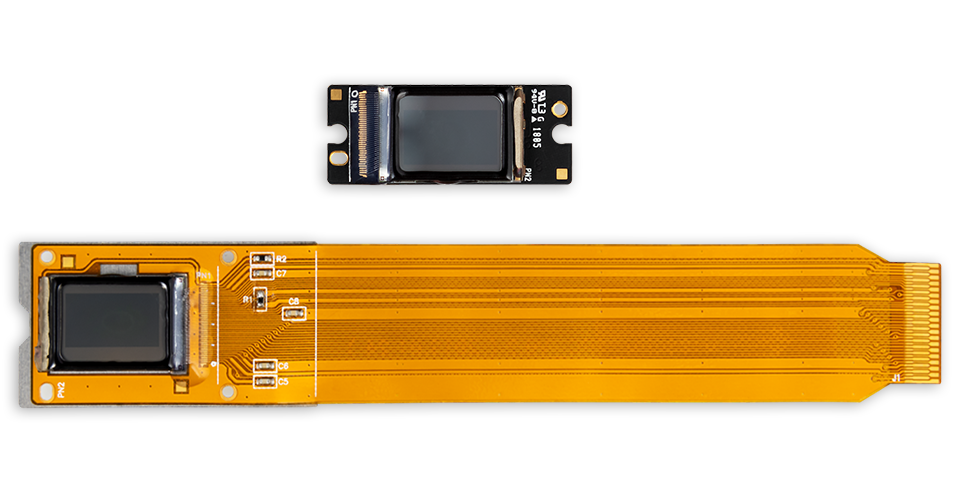

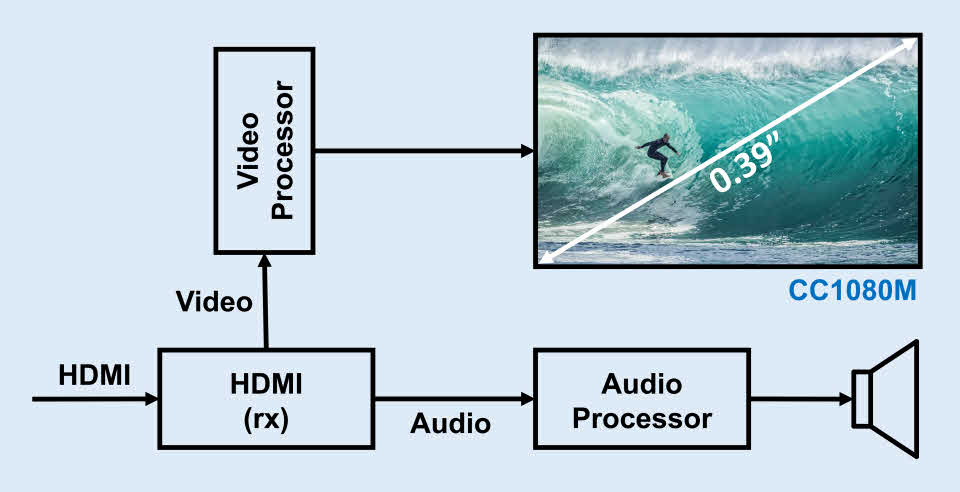

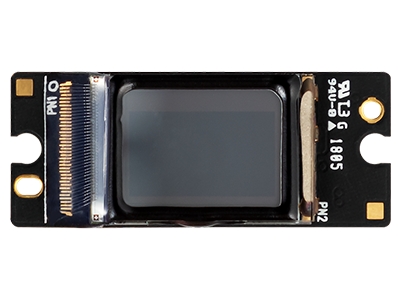

CC1080M
FHD LCoS SoC | 1920x1080 0.39”
Features
- FHD 1920x1080 resolution
- 120 frame per sec refresh rate
- Efficient IO placing for system integration
- Vivid colors with true black
- AR VR applications
- Horizontal and vertical image flipping
- Cost efficient system design
- Low power consumption
| Parameter | Specification | Units |
|---|---|---|
| CC1080M | ||
| Pixel Matrix | 1984 x 1144 | Pixels |
| Active Matrix | 1920 x 1080 | Pixels |
| Active Matrix Area | 8.64 x 4.86 | mm |
| Display Size | 0.39 | in |
| Pixel Mirror / Pixel Pitch | 4.27 / 4.5 | um |
| Aperture Ratio | 90.04 | % |
| Dot Clock | 125 | MHz |
| Video Drive Method | Invert video every frame, 8 pixels per dot clock |

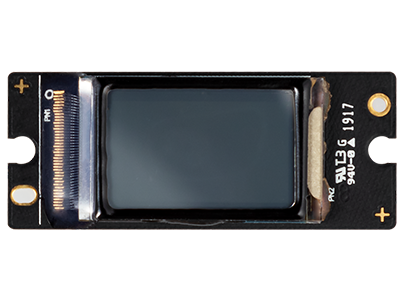

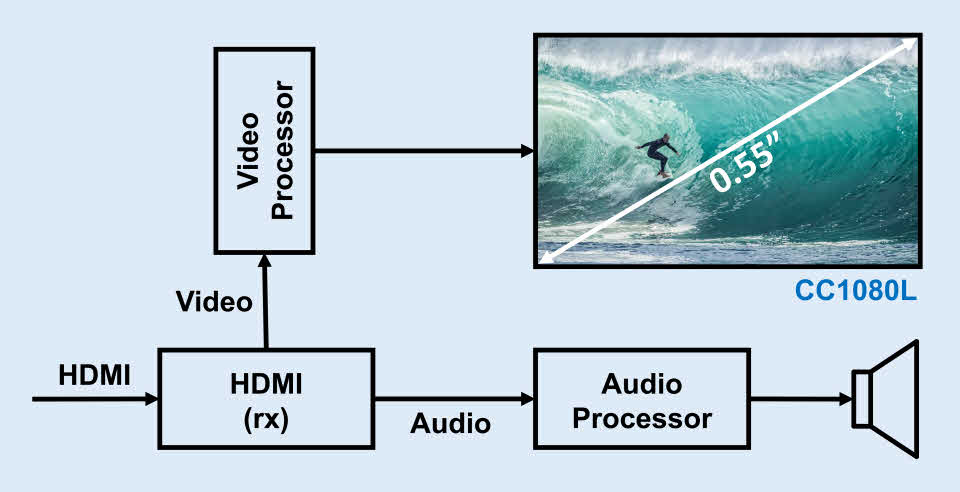

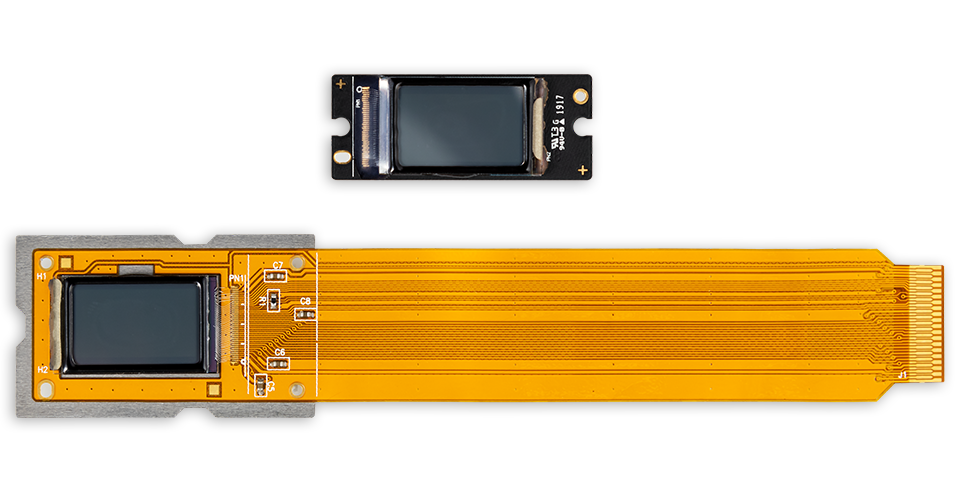

CC1080L
FHD LCoS SoC | 1920x1080 0.55”
Features
- FHD 1920x1080 resolution
- 120 frame per sec refresh rate
- Efficient IO placing for system integration
- Vivid colors with true black
- AR VR applications
- Horizontal and vertical image flipping
- Cost efficient system design
- Low power consumption
| Parameter | Specification | Units |
|---|---|---|
| CC1080L | ||
| Pixel Matrix | 1936 x 1096 | Pixels |
| Active Matrix | 1920 x 1080 | Pixels |
| Active Matrix Area | 12.1 x 6.8 | mm |
| Display Size | 0.55 | in |
| Pixel Mirror / Pixel Pitch | 6.05 / 6.3 | um |
| Aperture Ratio | 92.22 | % |
| Dot Clock | 125.0 | MHz |
| Video Drive Method | Invert video every frame, 8 pixels per dot clock |

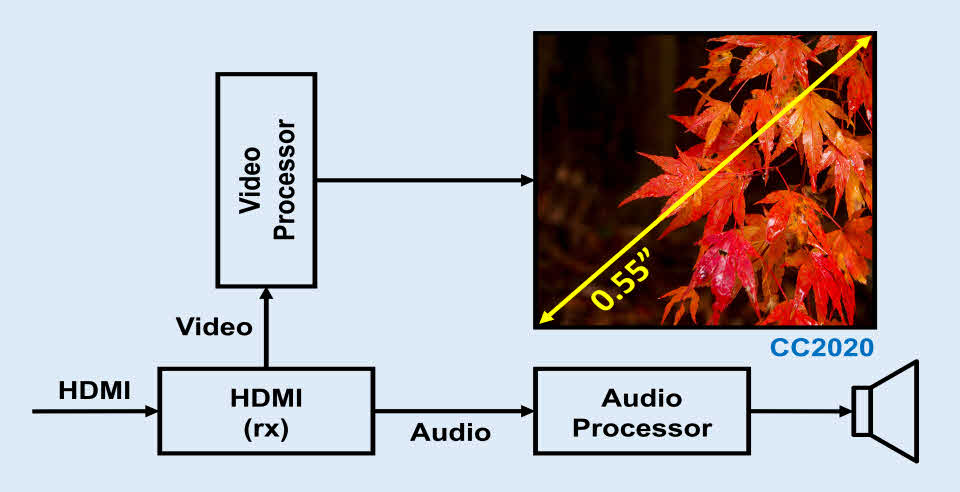

CC2020
UHD LCoS SoC | 2560x2560 0.55”
Features
- UHD 2560x2560 resolution
- 120 frame per sec refresh rate
- Efficient IO placing for system integration
- Vivid colors with true black
- AR VR applications
- 32 parallel pixels loading
- Compact input data interface
- Horizontal and vertical image flipping
- Cost efficient system design
- Low power consumption
| Parameter | Specification | Units |
|---|---|---|
| CC2020 | ||
| Pixel Matrix | 2560 x 2560 | Pixels |
| Active Matrix | 2560 x 2560 | Pixels |
| Active Matrix Area | 9.86 x 9.86 | mm |
| Display Size | 0.55 | in |
| Pixel Mirror / Pixel Pitch | 3.6 / 3.85 | um |
| Aperture Ratio | 87.43 | % |
| Dot Clock | 125.0 | MHz |
| Video Drive Method | Invert video every frame, 32 pixels per dot clock |

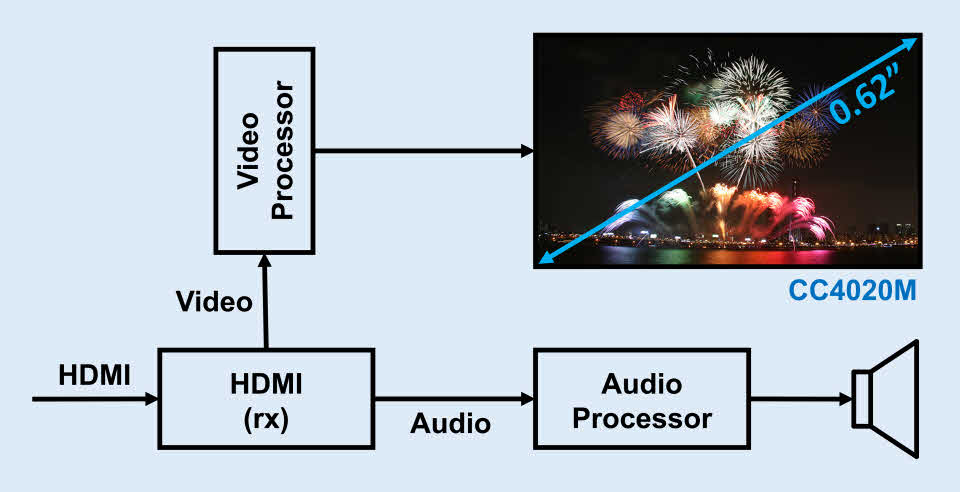

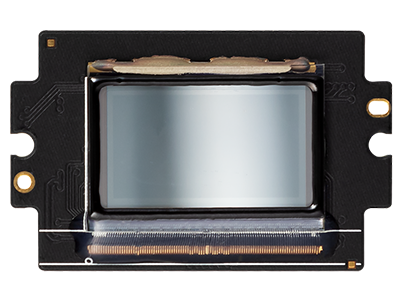

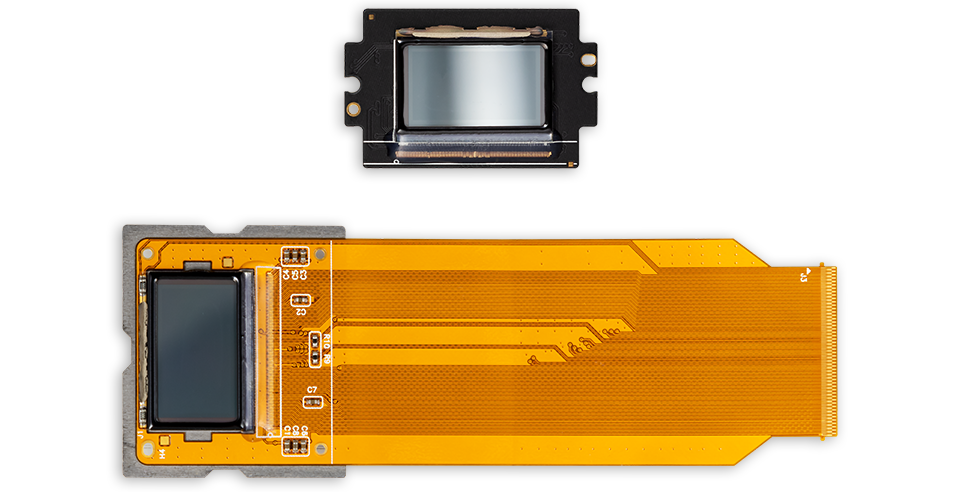

CC4020M
UHD LCoS SoC | 4096x2240 0.62”
Features
- UHD 4096x2240 resolution
- 120 frame per sec refresh rate
- Efficient IO placing for system integration
- Vivid colors with true black
- AR VR applications
- 32 parallel pixels loading
- Compact input data interface
- Horizontal and vertical image flipping
- Cost efficient system design
- Low power consumption
| Parameter | Specification | Units |
|---|---|---|
| CC4020M | ||
| Pixel Matrix | 4096 x 2240 | Pixels |
| Active Matrix | 3840 x 2160 | Pixels |
| Active Matrix Area | 13.82 x 7.78 | mm |
| Display Size | 0.62 | in |
| Pixel Mirror / Pixel Pitch | 3.37 / 3.6 | um |
| Aperture Ratio | 87.63 | % |
| Dot Clock | 125.0 | MHz |
| Video Drive Method | Invert video every frame, 32 pixels per dot clock |

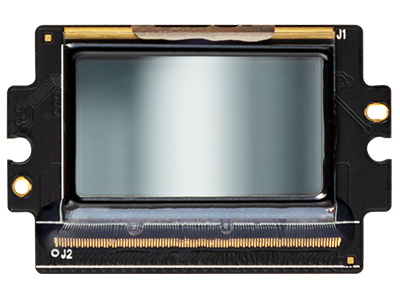

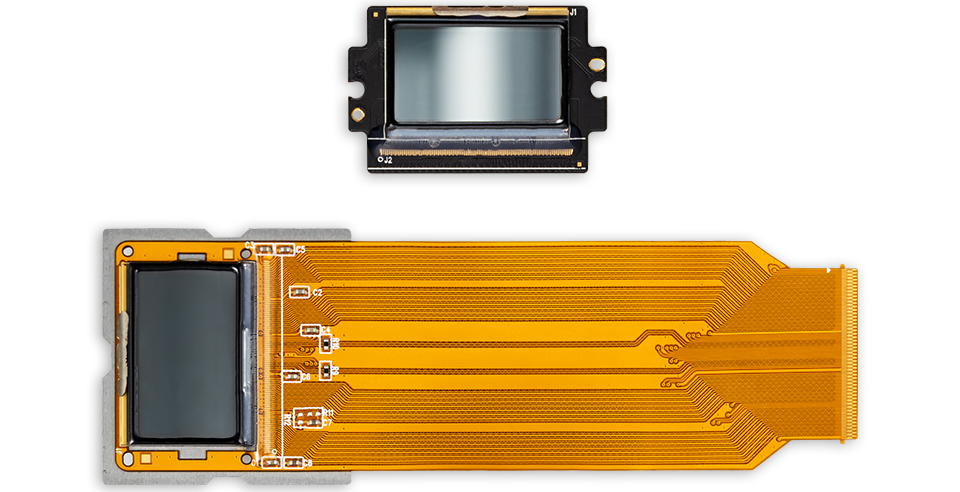

CC4020L
UHD LCoS SoC | 4096x2240 0.78”
Features
- UHD 4096x2240 resolution
- 120 frame per sec refresh rate
- Efficient IO placing for system integration
- Vivid colors with true black
- AR VR applications
- 32 parallel pixels loading
- Compact input data interface
- Horizontal and vertical image flipping
- Cost efficient system design
- Low power consumption
| Parameter | Specification | Units |
|---|---|---|
| CC4020L | ||
| Pixel Matrix | 4096 x 2240 | Pixels |
| Active Matrix | 3840 x 2160 | Pixels |
| Active Matrix Area | 17.28 x 9.72 | mm |
| Display Size | 0.78 | in |
| Pixel Mirror / Pixel Pitch | 4.27 / 4.5 | um |
| Aperture Ratio | 90.04 | % |
| Dot Clock | 125.0 | MHz |
| Video Drive Method | Invert video every frame, 32 pixels per dot clock |

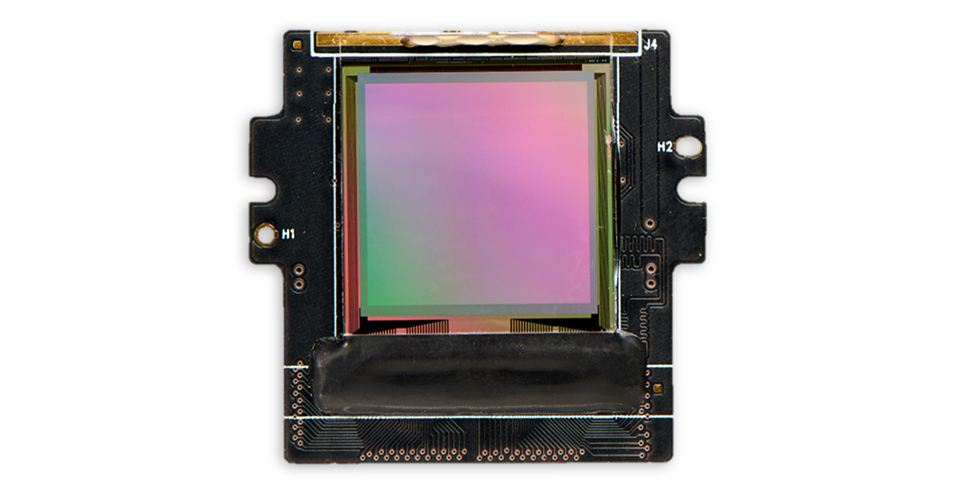

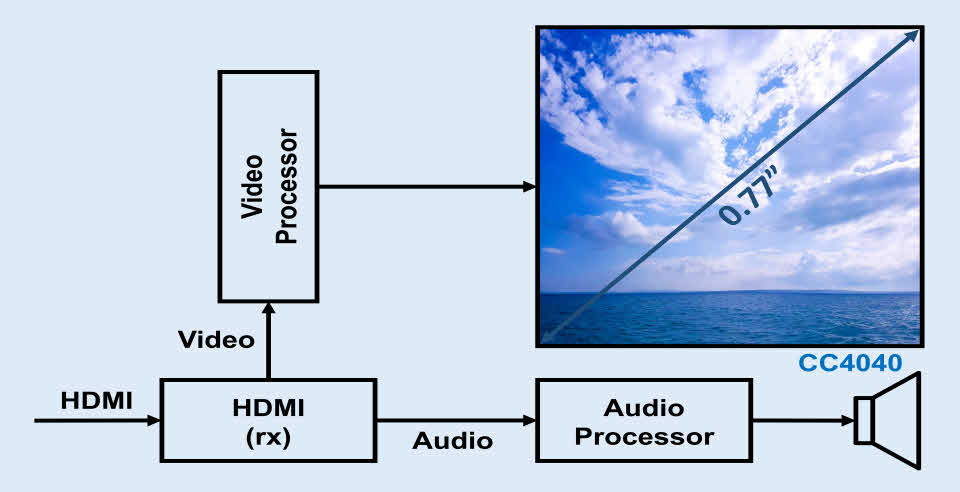

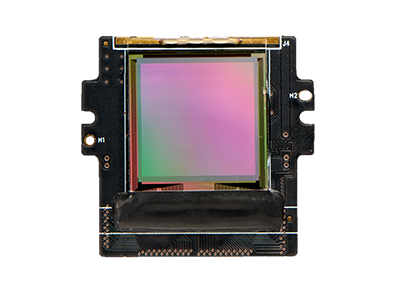

CC4040
UHD LCoS SoC | 4096x4096 0.77”
Features
- UHD 4096x4096 resolution
- 120 frame per sec refresh rate
- Efficient IO placing for system integration
- Vivid colors with true black
- AR VR applications
- 64 parallel pixels loading
- Compact input data interface
- Horizontal and vertical image flipping
- Cost efficient system design
- Low power consumption
| Parameter | Specification | Units |
|---|---|---|
| CC4040 | ||
| Pixel Matrix | 4096x4096 | Pixels |
| Active Matrix | 3840 x 3840 | Pixels |
| Active Matrix Area | 13.82 x 13.82 | mm |
| Display Size | 0.77 | in |
| Pixel Mirror / Pixel Pitch | 3.35 / 3.6 | um |
| Aperture Ratio | 86.59 | % |
| Dot Clock | 125.0 | MHz |
| Video Drive Method | Invert video every frame, 64 pixels per dot clock |

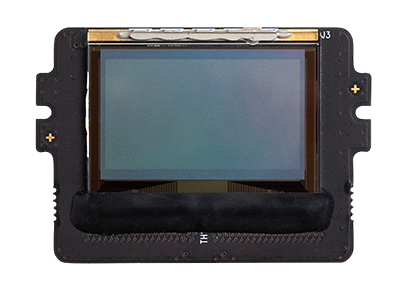

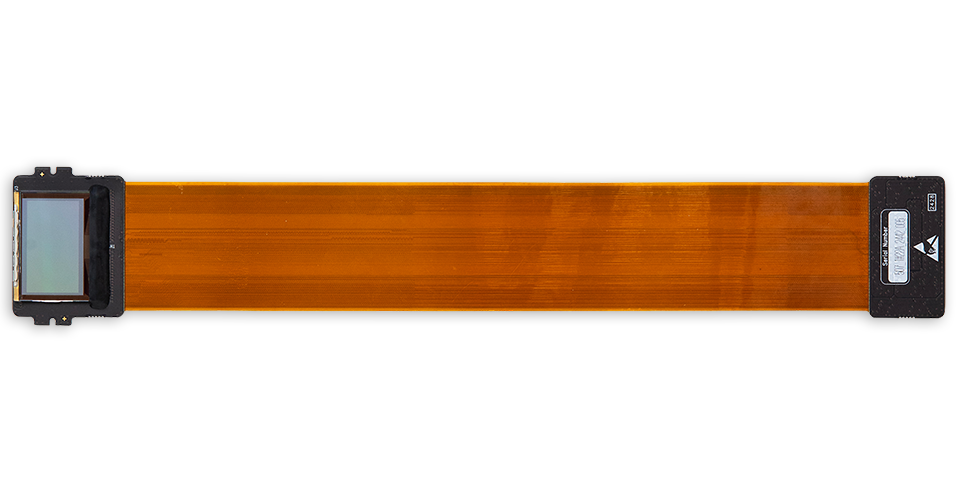

CC8040
UHD LCoS SoC | 7680x4352 1.11”
Features
- UHD 7680x4352 resolution
- 120 frame per sec refresh rate
- Efficient IO placing for system integration
- Vivid colors with true black
- AR VR applications
- Horizontal and vertical image flipping
- Cost efficient system design
- Low power consumption
| Parameter | Specification | Units |
|---|---|---|
| CC8040 | ||
| Pixel Matrix | 7680 x 4352 | Pixels |
| Active Matrix | 7680 x 4320 | Pixels |
| Active Matrix Area | 24.58 x 13.82 | mm |
| Display Size | 1.11 | in |
| Pixel Mirror / Pixel Pitch | 2.97 / 3.20 | um |
| Aperture Ratio | 86.14 | % |
| Dot Clock | 150 | MHz |
| Video Drive Method | Invert video every frame, 128 pixels per dot clock |
